Elephant Robotics 6 DOF Arm MyCobot 280 M5Stack

SKU: myCobot-280-M5
Sale price 771,75 €
incl. VAT
excl. VAT

Shipping from China within 5–10 working days

- During check out, you can choose direct shipping from China, or let us import the order to our EU/US office first and ship it to you locally.

- Import customs clearance and VAT are fully handled by us.

Add to Wishlist

Need a larger quantity?

Need bulk pricing?

Get a formal quotation with lead time and volume pricing.

Request for Quote

For universities, companies, distributors, and project orders.

Elephant 6 DOF Robotics Arm MyCobot 280 M5Stack-1

Elephant Robotics 6 DOF Arm MyCobot 280 M5Stack

771,75 €

The myCobot 280 M5Stack is a compact, lightweight 6-axis collaborative robotic arm weighing under 1kg. Recognized by IEEE as one of the world’s smallest robot arms, it's engineered for AI education, robotics research, makers, and light-duty automation. With a 250g payload and 280mm working radius, this desktop cobot supports ROS, Python, and multiple platforms for limitless possibilities in development and application.



Key Features

  • Compact & Lightweight – Weighs less than 1kg, perfect for desktop robotics and portable use

  • 6 Degrees of Freedom – Delivers ±0.5mm repeatability using 6 efficient servo motors

  • Powerful Core – Dual ESP32 processors ensure stable and flexible control

  • Cross-Platform Compatibility – Supports Android, Windows, macOS, Linux via USB, Wi-Fi, or Bluetooth

  • Supports ROS1 & ROS2 – Enables advanced simulation and path planning with MoveIt integration

  • Open Programming Ecosystem – Works with Python, C++, C#, Arduino, and more

  • Fully Programmable – Use Blockly, UIFlow, or RoboFlow for visual or code-based control

  • AI Expansion Ready – Add-on AI Kit for machine vision and smart object recognition

  • Extensive End Effector Options – Modular Lego-style interface supports various tools and customization



Use Cases & Scenarios

  • Education & AI Research
    Perfect for students and labs learning Python, ROS, and robotic control principles.

  • Creative Projects
    Enables drawing, writing, engraving, and painting with intuitive motion control.

  • Pick & Place Automation
    Precise positioning and gamepad support make it great for sorting and movement tasks.

  • DIY Robotics
    A favorite among makers for its modular design and plug-and-play expansion options.

  • Compound Robots

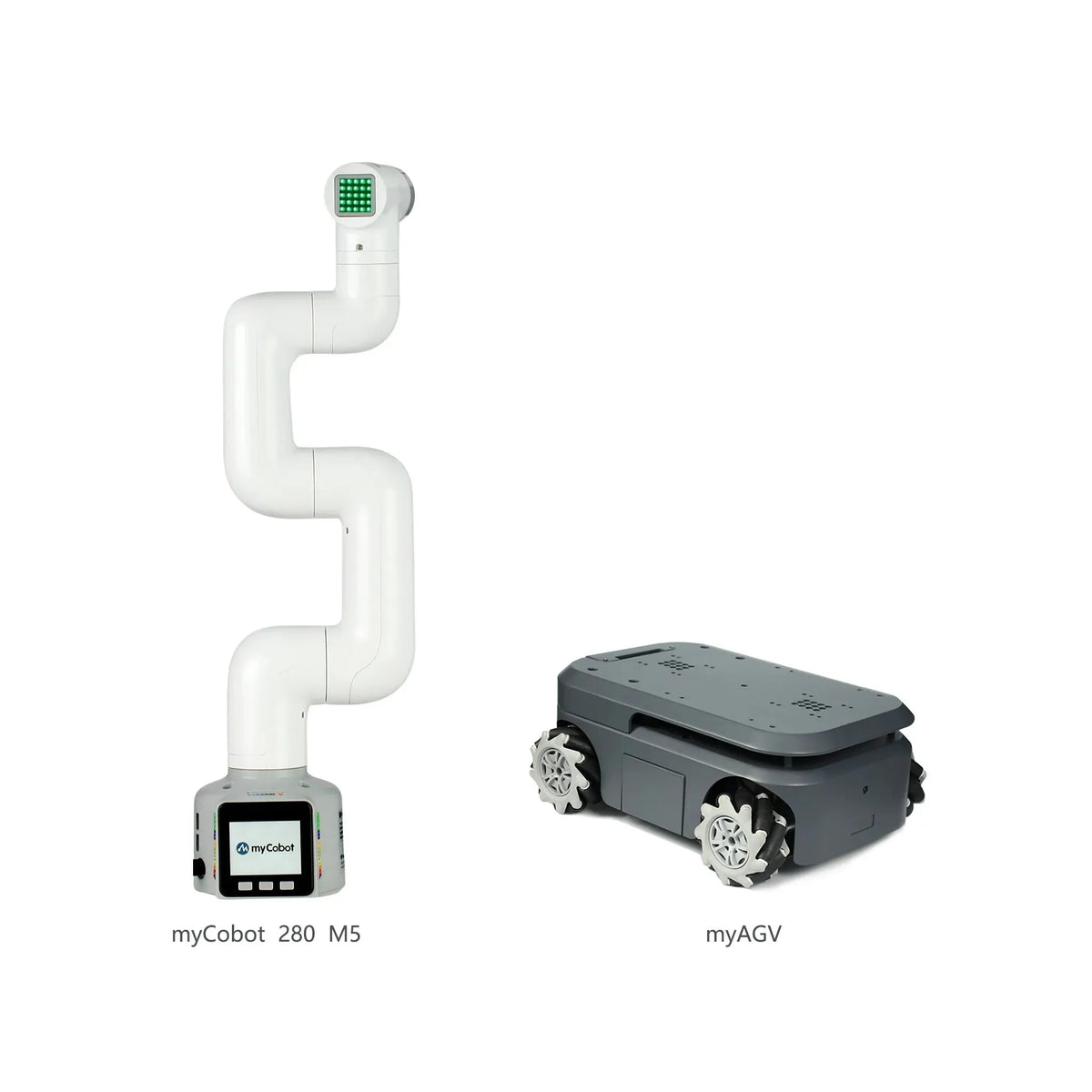

    Combine with myAGV mobile chassis to build compound robots with mobility and manipulation capabilities.



Robot Specifications

  • DOF: 6 servo motors

  • Payload: Up to 250g

  • Working Radius: 280mm

  • Repeat Accuracy: ±0.5mm

  • Core Controller: 2 × ESP32

  • Integrated Matrix Display: 5×5 RGB LED

  • Screen: 2" LED display

  • Buttons: 3 customizable

  • Connectivity: USB / Wi-Fi / Bluetooth

  • Programming: Python, Arduino, C++, Blockly, UIFlow



Supported Software

  • RoboFlow: Drag-and-teach interface for fast setup

  • myBlockly: Visual block-based programming

  • UIFlow: M5Stack ecosystem integration

  • MoveIt (ROS): Advanced robotics simulation, path planning & object avoidance



Highlights

  • 10,000+ users across 50+ countries

  • Featured on IEEE and supported by leading robotics communities

  • Designed for rapid prototyping and advanced robotics development

  • Supports multiple platforms and programming languages

  • Trusted by schools, research labs, and professional creators worldwide



Recommended for

  • Robotics learners & educators

  • Developers building automation systems

  • Research teams exploring AI and ROS

  • Makers creating DIY robotic projects

  • Competitions, demos, and creative workshops



Package Contents

  • myCobot 280 Robotic Arm (M5Stack Edition)

  • Power Adapter & USB Cable

  • Instruction Manual

  • Mounting Base (optional accessories sold separately)



2023 vs. 2020 – Version Comparison

Still using an older myCobot? Here’s why the 2023 version is the better choice for modern robotics development:

Product Features myCobot 2023 Support myCobot 2020 Support
Kinematics Algorithm Update Supported (LST) Supported (LST)
Gitbook Supported (LST) Supported (LST)
GamePad Control Supported (LST) Supported (LST)
App Control Supported (LST) Supported (LST)
myStudio Supported (LST) Supported (LST)
myBlock Supported (LST) Supported (LST)
ROS 1 Supported (LST) Supported (LST)
ROS 2 Supported (LST) Supported (LST)
System Firmware Upgrade Ongoing Ended: 2023.09.30
Software Maintenance Ongoing Ended: 2023.09.30
Security Vulnerability Repair Ongoing Ended: 2023.09.30

Note: “LST” refers to Long Support Term – the feature is maintained across both versions. However, the 2020 version is no longer receiving critical firmware, maintenance, or security updates.



Why Choose the 2023 Version?

  • Continued updates and security support

  • Compatible with the latest software ecosystem

  • Future-proof for education, research, and innovation

  • Recommended for all new development and deployment



Reference

Get Users Tutorial On Gitbook (Recommended reading)

Get Software Tutorial On Github (Coding Learning)

Download 3D Files (Host & Accessories STEP Files)
